MODEL NO.


SPEC.

ANNOTATION

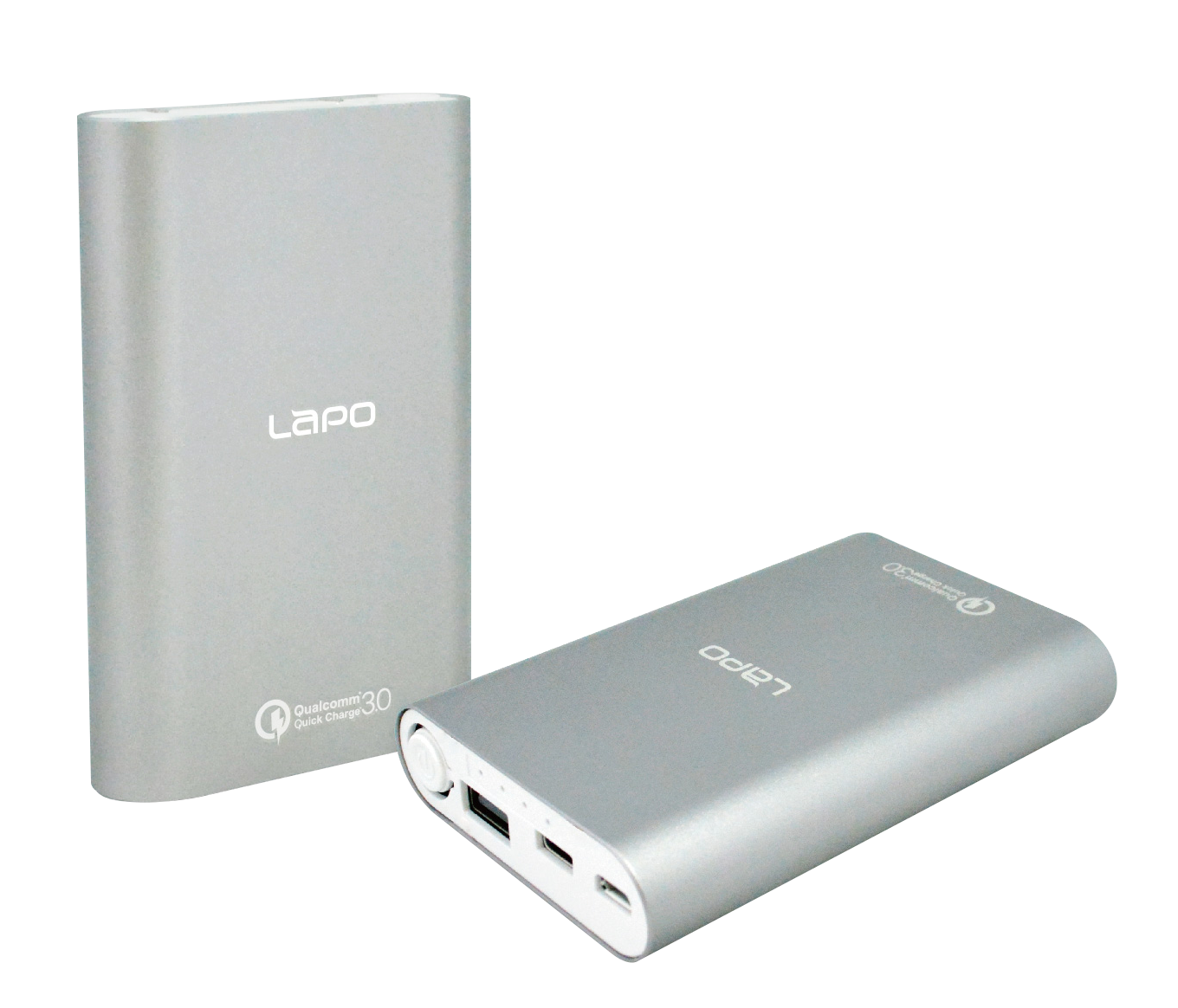

E20Q

Cell Type : Lithium
batterys Input1 : 5 VDC / 2.0A
Input2 : 5 VDC / 2.0A
Output1 (USB) : 3.6 ~ 6.5 VDC / 3.0A ========== =or 6.5 ~ 9.0 VDC / 1.6A = or 9 ~12.0 VDC / 1.3A
Output2 (Type C) : 5 VDC / 3.0A
Capacity : 9400 mAh
Dimension : 19.5 x 68.8 x 101.6 mm
Weight : 230 g

OEM/ODM
are welcome

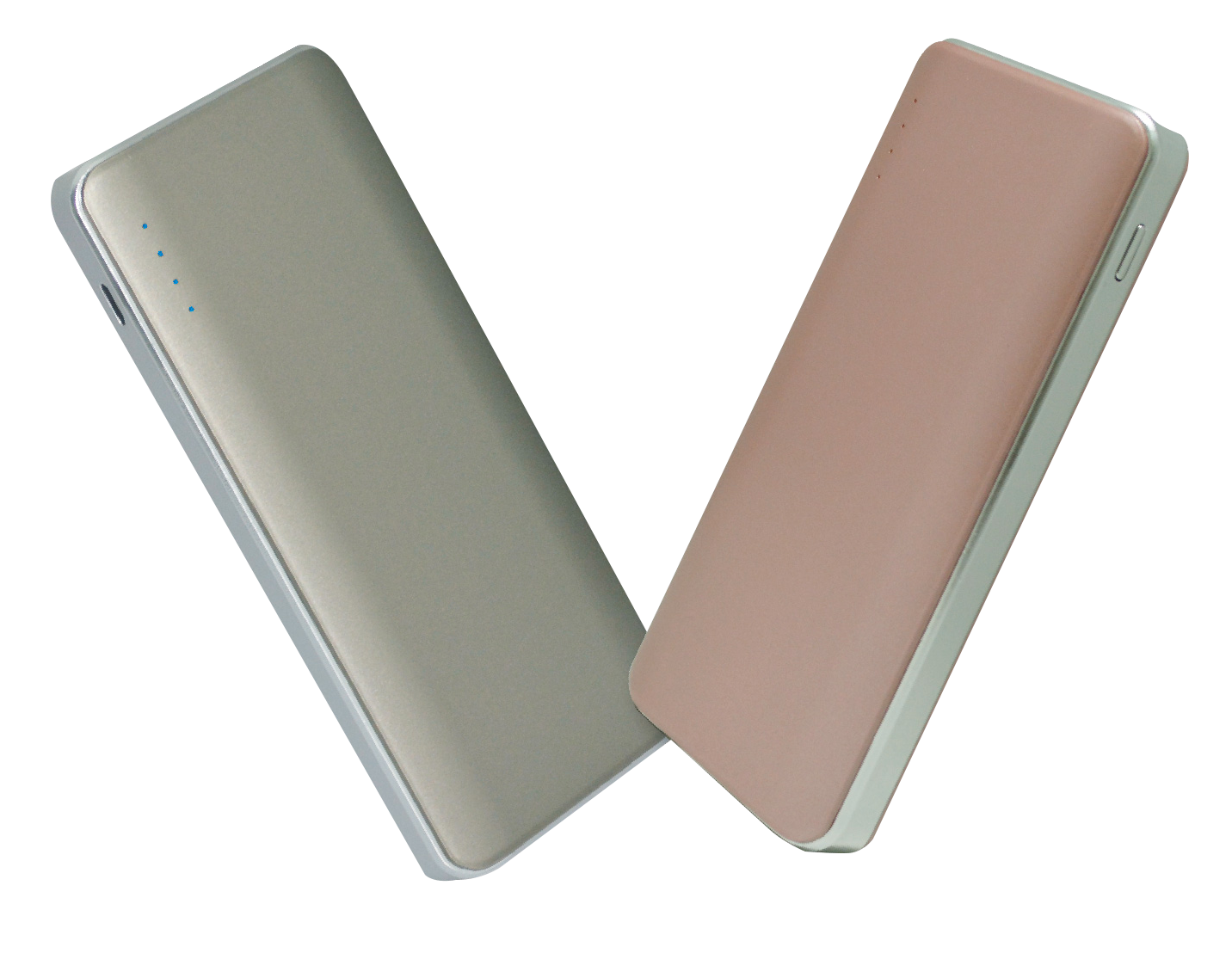

E22

Cell Type : Lithium
batterys Input1 : 5 VDC / 2A
Output1 (USB) : 3.6 ~ 6.5 VDC / 3A ========== =or 6.5 ~ 9.0 VDC / 1.6A = or 9 ~12.0 VDC / 1.3A
Output2 : 5 VDC / 1.0A
Capacity : 9000 mAh
Dimension : 132 x 58 x 19.8 mm
Weight : 183.5 g

OEM/ODM
are welcome

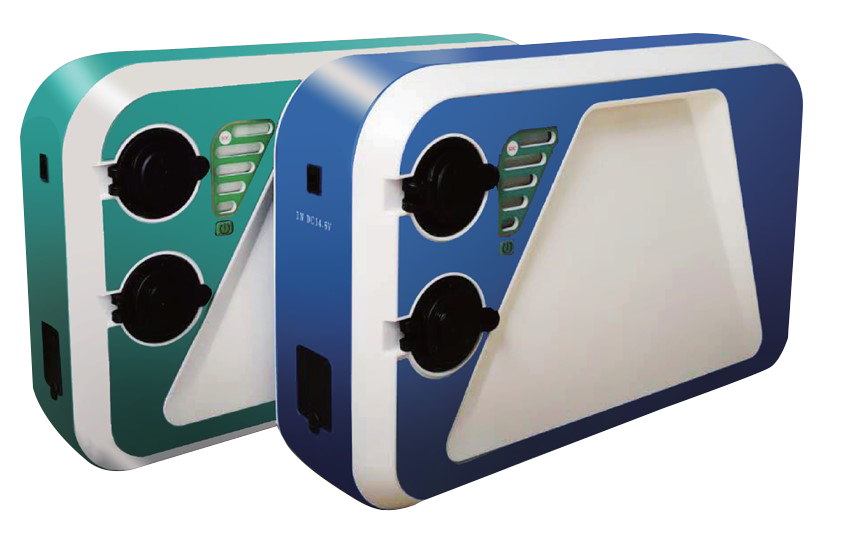

P35

Cell Type : LiFePO4
batterys Input1 : 14.6 VDC / 5.0A
Output1 (USB) : 5 VDC / 2.1A = 5 VDC / 1.0A = 120 ~ 220 VAC / 150W
Output2 (Cigarette lighter) : 12 VDC /240W
Output3 (EC5) : 12 VDC /240W
Capacity : 30000 mAh
SOC monitor : 5
LED :100%/4LED :80%/ = 3LED :60%/2LED :40%/1LED : ≦20%
Dimension : 276 x 176 x 78 mm
Weight : 3 Kg

OEM/ODM
are welcome

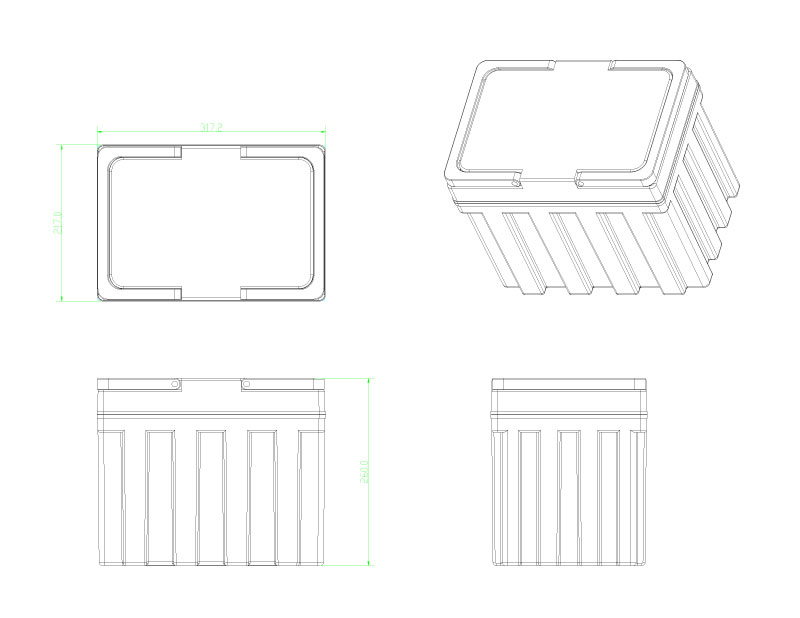

P100

Cell Type : LiFePO4
batterys Input1 : 14.4 VDC / 20.85A
Output1 (USB) : 5 VDC / 2.1A = 5 VDC / 1.0A = 120 ~ 220 VAC / 150W
Output2 (EC5) : 13.2 VDC / 1000W
Capacity : 100000 mAh SOS
signal : 3W With signal light
Dimension : 280 x 200 x 280 mm
Weight : 18 Kg

OEM/ODM
are welcome
