E-bike

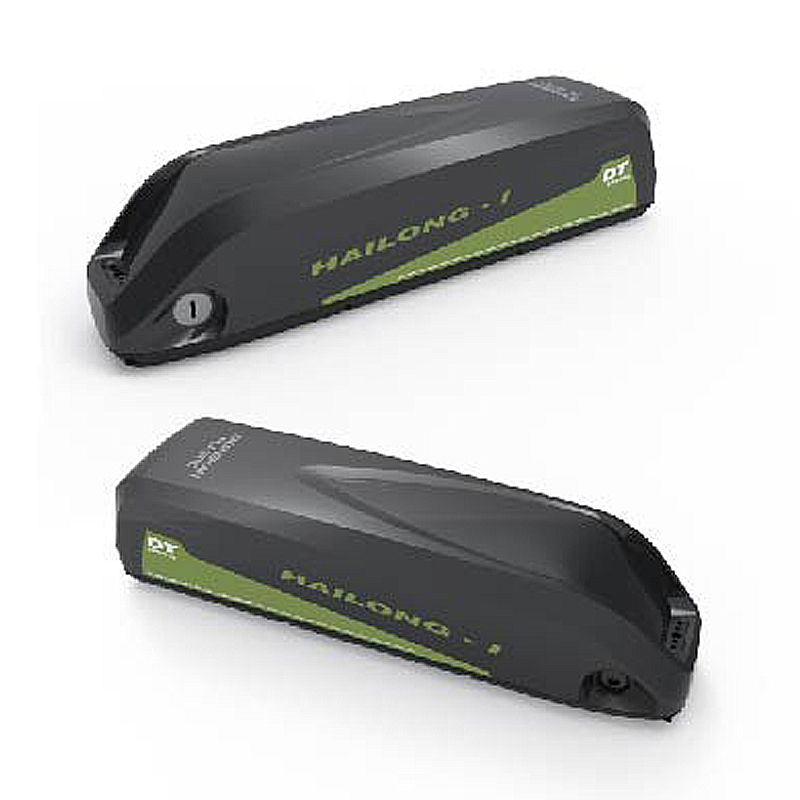

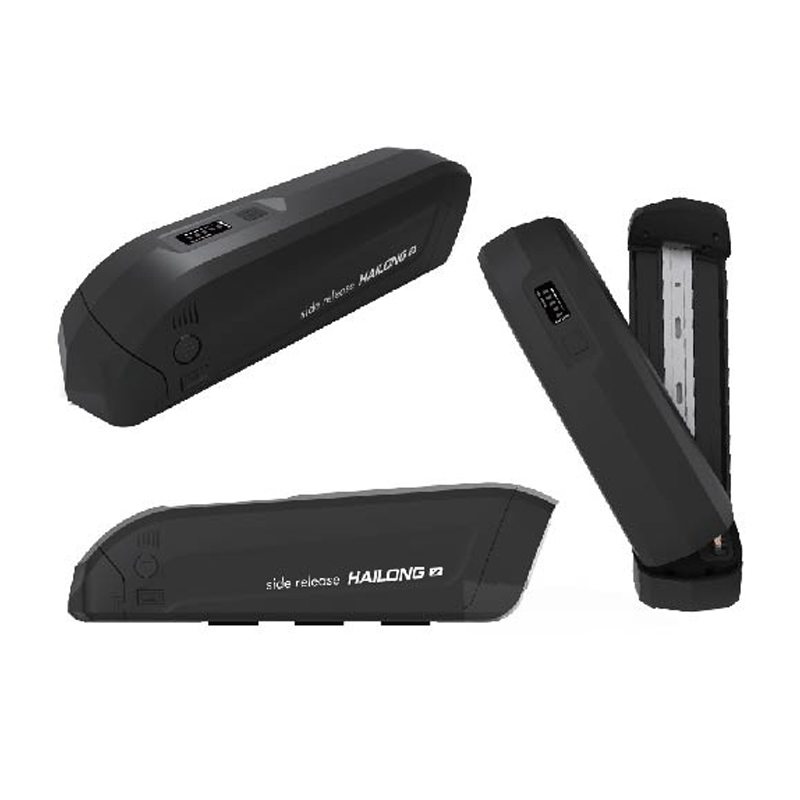

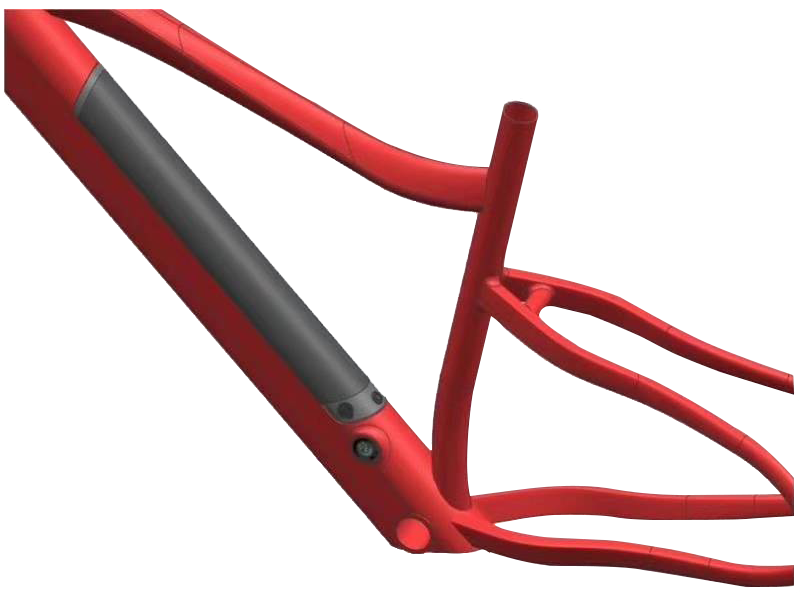

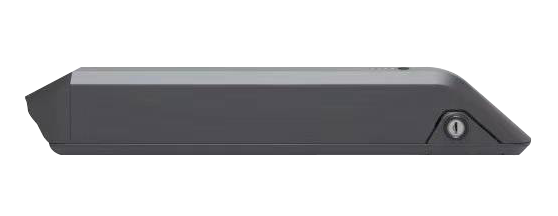

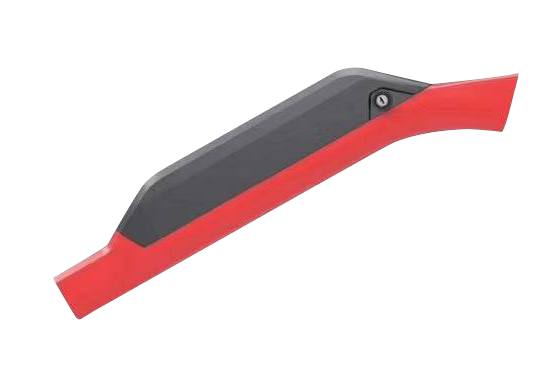

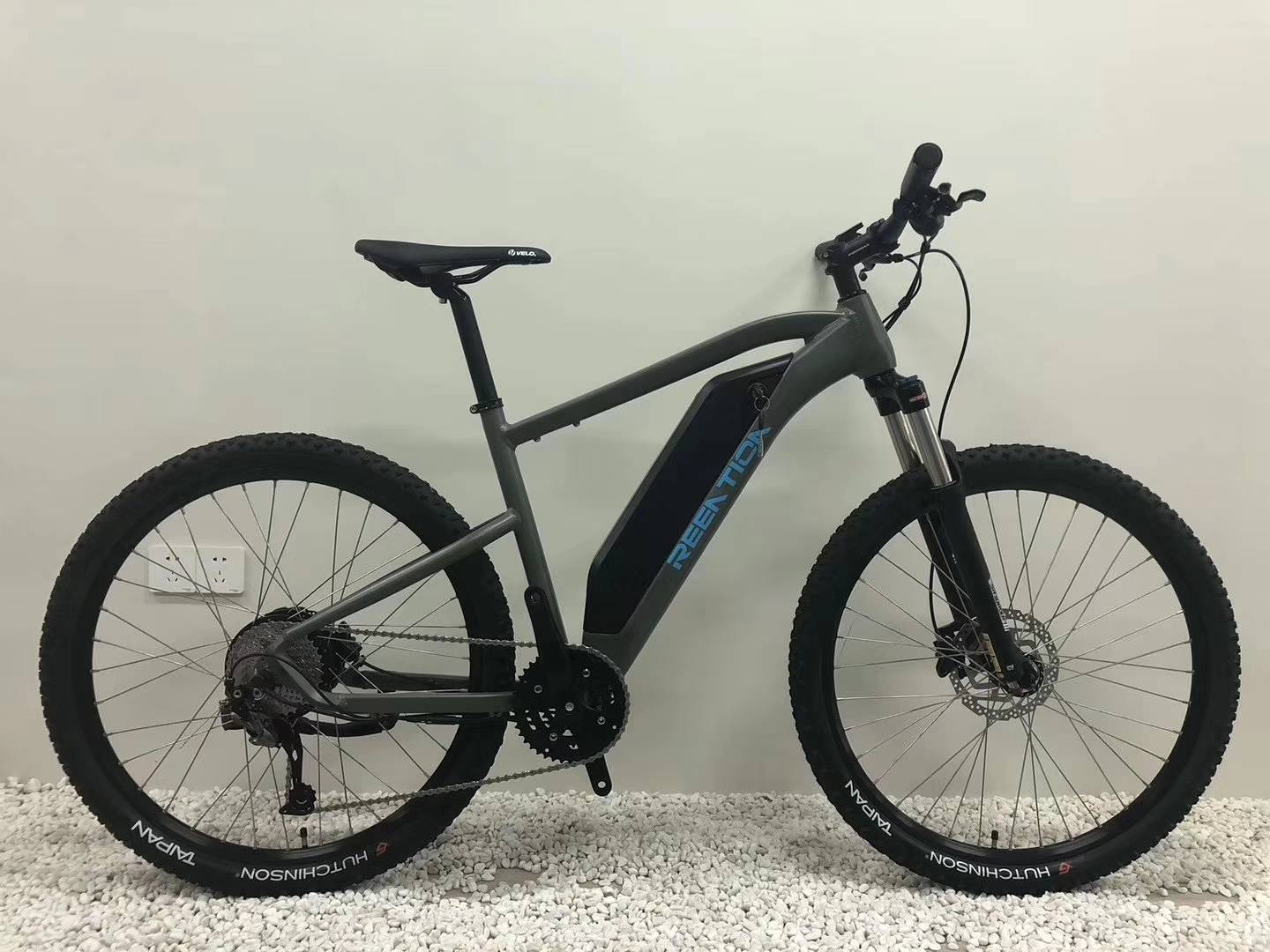

DOWN TUBE
MODEL NO.
SPEC.
ANNOTATION
DT- 001
Cell Type : 18650 – 2.6A / 2.9A / 3.45A
Max Cell Space : 18650 * 40pc
Max Capacity : 36V / 13.8Ah ; 48V / 10.35Ah ; 496Wh
Dimension : 431.3mm * 105.2mm * 64.3mm ( PRO Type )
Housing: Aluminum
Waterproof : IPX-5
communication: UART / CANBUS
Capacity LED Display : YES.
BMS EN13849 certificated : YES
OEM/ODM are welcome
DT- 002
Cell Type : 18650 – 2.6A / 2.9A / 3.45A
Max Cell Space : 18650 * 50pc (PRO Type )
Max Capacity : 36V / 17.25Ah ; 48V / 10.35Ah ; 621Wh
Dimension : 505mm * 72mm * 65mm ( PRO Type )
Housing: Aluminum
Waterproof : IPX-5
communication: UART / CANBUS Capacity LED Display : YES.
BMS EN13849 certificated : YES
OEM/ODM are welcome
DT-003
Cell Type : 18650 – 2.6A / 2.9A / 3.45A
Max Cell Space : 18650 * 52pc
Max Capacity : 36V / 17.25Ah ; 48V / 13.8Ah ; 621Wh
Housing: Aluminum
Waterproof : IPX-5
communication: UART / CANBUS
Capacity LED Display : YES.
BMS EN13849 certificated : YES
OEM/ODM are welcome
DT-004
Cell Type : 18650 – 2.6A / 2.9A / 3.45A
Max Cell Space : 18650 * 70pc
Max Capacity : 36V/24.15Ah;48V/17.25Ah ; 869Wh
Housing: Aluminum
Waterproof : IPX-5
communication: UART / CANBUS
Capacity LED Display : YES.
BMS EN13849 certificated : YES
OEM/ODM are welcome
DT-005
Cell Type : 18650 – 2.6A / 2.9A / 3.45A
Max Cell Space : 18650 * 40pc
Max Capacity : 36V / 13.8Ah ; 48V / 10.35Ah ; 496Wh
Housing: Aluminum
Waterproof : IPX-5
communication: UART / CANBUS
Capacity LED Display : YES.
BMS EN13849 certificated : YES
OEM/ODM are welcome
DT-006
Cell Type : 18650 – 2.6A / 2.9A / 3.45A
Max Cell Space : 18650 * 52pc
Max Capacity : 36V / 17.25Ah ; 48V / 13.8Ah ; 621Wh
Housing: Aluminum
Waterproof : IPX-5
communication: UART / CANBUS
Capacity LED Display : YES.
BMS EN13849 certificated : YES
OEM/ODM are welcome
DT-007
Cell Type : 18650 – 2.6A / 2.9A / 3.45A
Max Cell Space : 18650 * 40pc
Max Capacity : 36V / 13.8Ah ; 48V / 10.35Ah ; 496Wh
Housing: Aluminum
Waterproof : IPX-5
communication: UART / CANBUS
Capacity LED Display : YES.
BMS EN13849 certificated : YES
OEM/ODM are welcome
DT-008
Cell Type : 18650 – 2.6A / 2.9A / 3.45A
Max Cell Space : 18650 * 40pc
Max Capacity : 36V / 13.8Ah ; 48V / 10.35Ah ; 496Wh
Housing: Aluminum
Waterproof : IPX-5 communication: UART / CANBUS
Capacity LED Display : YES.
BMS EN13849 certificated : YES
OEM/ODM are welcome
DT-009
Cell Type : 18650 – 2.6A / 2.9A / 3.45A
Max Cell Space : 18650 * 52pc
Max Capacity : 36V / 17.25Ah ; 48V / 13.8Ah ; 621Wh
Housing: Aluminum
Waterproof : IPX-5 communication: UART / CANBUS
Capacity LED Display : YES.
BMS EN13849 certificated : YES
OEM/ODM are welcome
SEAT TUBE
MODEL NO.
SPEC.
ANNOTATION
ST-101
Cell Type : 18650 – 2.6A / 2.9A / 3.45A
Max Cell Space : 18650 * 65pc
Max Capacity : 36V / 20.7Ah ; 48V / 17.25Ah ; 622Wh
Housing: Aluminum
Waterproof : IPX-5
communication: UART / CANBUS
Capacity LED Display : YES.
BMS EN13849 certificated : YES
OEM/ODM are welcome
ST-102
Cell Type : 18650 – 2.6A / 2.9A / 3.45A
Max Cell Space : 18650 * 50pc
Max Capacity : 24V / 24.15Ah ; 36V / 17.25Ah ; 48V / 10.35Ah ; 621Wh
Housing: Aluminum
Waterproof : IPX-5
communication: UART / CANBUS
Capacity LED Display : YES.
BMS EN13849 certificated : YES
OEM/ODM are welcome
ON FRAME
MODEL NO.
SPEC.
ANNOTATION
OF-201
Cell Type : 18650 – 2.6A / 2.9A / 3.45A
Max Cell Space : 18650 * 52pc
Max Capacity : 36V / 17.25Ah ; 48V / 13.8Ah ; 622Wh Dimension : 361mm * 90mm * 92mm Housing: Plastic
Waterproof : IPX-5
communication: UART / CANBUS
Capacity LED Display : YES.
BMS EN13849 certificated : Exist
OEM/ODM are welcome
OF-202
Cell Type : 18650 – 2.6A / 2.9A / 3.45A
Max Cell Space : 18650 * 65pc
Max Capacity : 36V / 20.7Ah ; 48V / 17.25Ah ; 745Wh
Housing: Plastic
Waterproof : IPX-5
communication: UART / CANBUS
Capacity LED Display : YES.
BMS EN13849 certificated : Exist
OEM/ODM are welcome
OF-203
Cell Type : 18650 – 2.6A / 2.9A / 3.45A
Max Cell Space : 18650 * 40pc
Max Capacity : 36V / 13.8Ah ; 48V / 10.35Ah ; 496Wh
Housing: Plastic
Waterproof : IPX-5
communication: UART / CANBUS
Capacity LED Display : YES.
BMS EN13849 certificated : Exist
OEM/ODM are welcome
OF-204
Cell Type : 18650 – 2.6A / 2.9A / 3.45A
Max Cell Space : 18650 * 40pc
Max Capacity : 36V / 13.8Ah ; 48V / 10.35Ah ; 496Wh
Housing: Plastic
Waterproof : IPX-5
communication: UART / CANBUS
Capacity LED Display : YES.
BMS EN13849 certificated : YES
OEM/ODM are welcome
OF-205
Cell Type : 18650 – 2.6A / 2.9A / 3.45A
Max Cell Space : 18650 * 52pc
Max Capacity : 36V / 17.25Ah ; 48V / 13.8Ah ; 621Wh
Housing: Plastic
Waterproof : IPX-5
communication: UART / CANBUS
Capacity LED Display : YES.
BMS EN13849 certificated : YES
OEM/ODM are welcome
REAR CARRIED FRAME
MODEL NO.
SPEC.
ANNOTATION

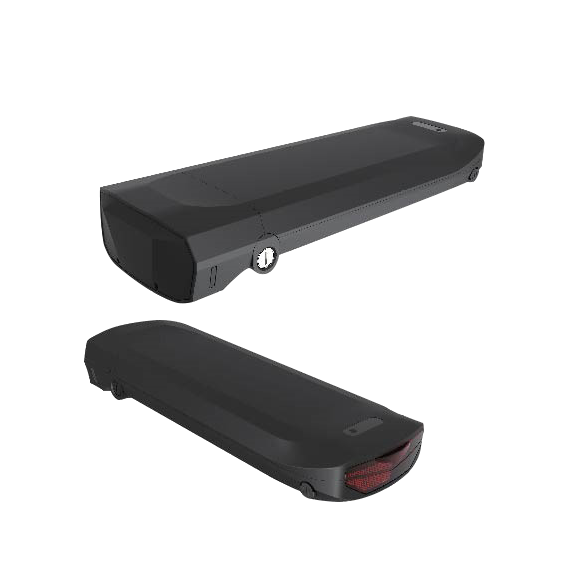

RC-301
Cell Type : 18650 – 2.6A / 2.9A / 3.45A
Max Cell Space : 18650 * 52pc
Max Capacity : 36V / 17.25Ah ; 48V / 13.8Ah ; 621Wh
Housing: Plastic
Waterproof : IPX-5
communication: UART / CANBUS
Capacity LED Display : YES.
BMS EN13849 certificated : YES
OEM/ODM are welcome
RC-302
Cell Type : 18650 – 2.6A / 2.9A / 3.45A
Max Cell Space : 18650 * 52pc
Max Capacity : 36V / 17.25Ah ; 48V / 13.8Ah ; 621Wh
Housing: Plastic
Waterproof : IPX-5
communication: UART / CANBUS
Capacity LED Display : YES.
BMS EN13849 certificated : YES
OEM/ODM are welcome

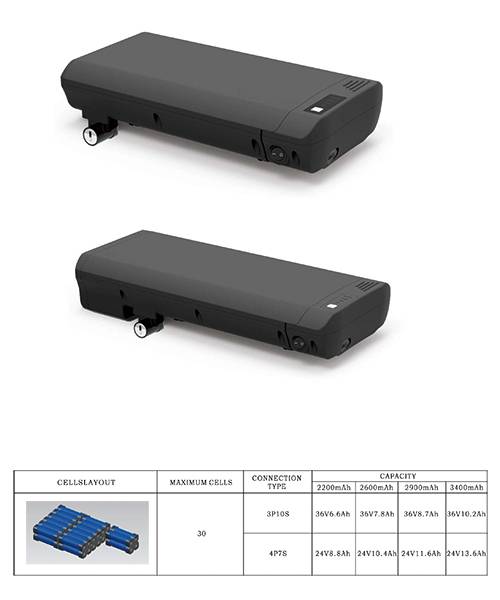

RC-303-01
Cell Type : 18650 – 2.6A / 2.9A / 3.45A
Max Cell Q`ty : 18650 * 30pc
Max Capacity : 36V / 10.35Ah ; 48V / 6.9Ah ; 372Wh Dimension : 349mm * 148mm * 56.0mm
Housing: Plastic
Waterproof : IPX-5
communication: UART / CANBUS
Capacity LED Display : YES.
BMS EN13849 certificated : YES
OEM/ODM are welcome
RC-303-02
Cell Type : 18650 – 2.6A / 2.9A / 3.45A
Max Cell Q`ty : 18650 * 40pc
Max Capacity : 36V / 13.8Ah ; 48V / 10.35Ah ; 496Wh Dimension : 407mm * 148mm * 54.3mm
Housing: Plastic Waterproof : IPX-5
communication: UART / CANBUS
Capacity LED Display : YES.
BMS EN13849 certificated : YES
OEM/ODM are welcome

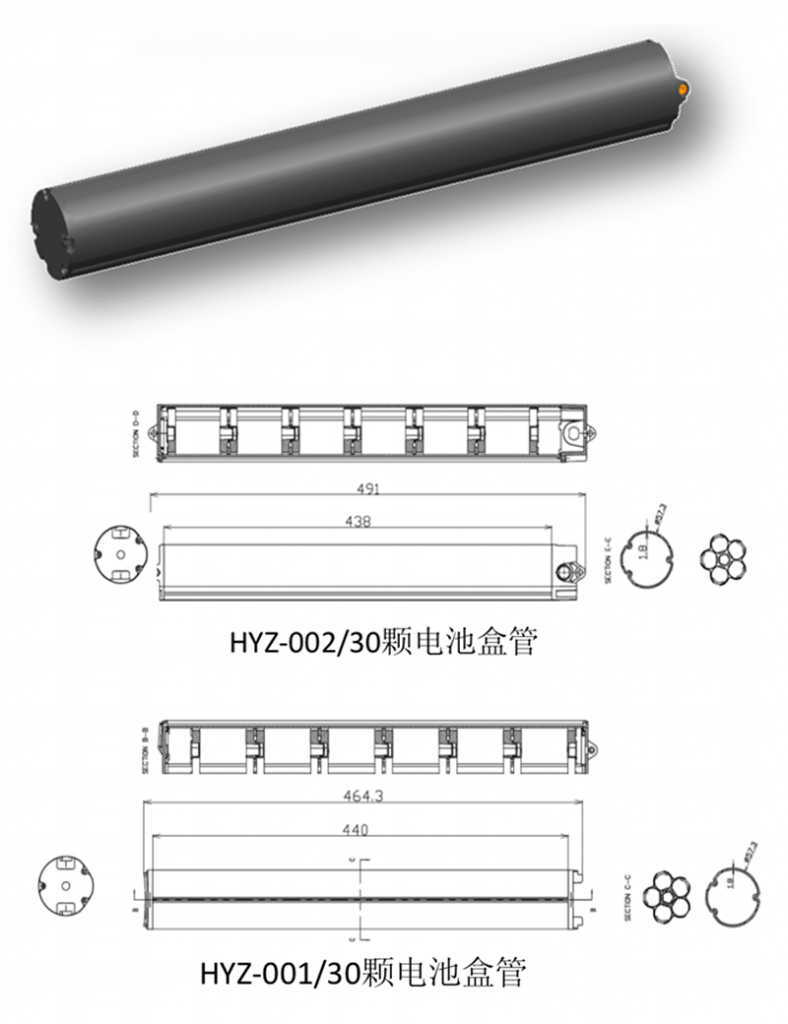

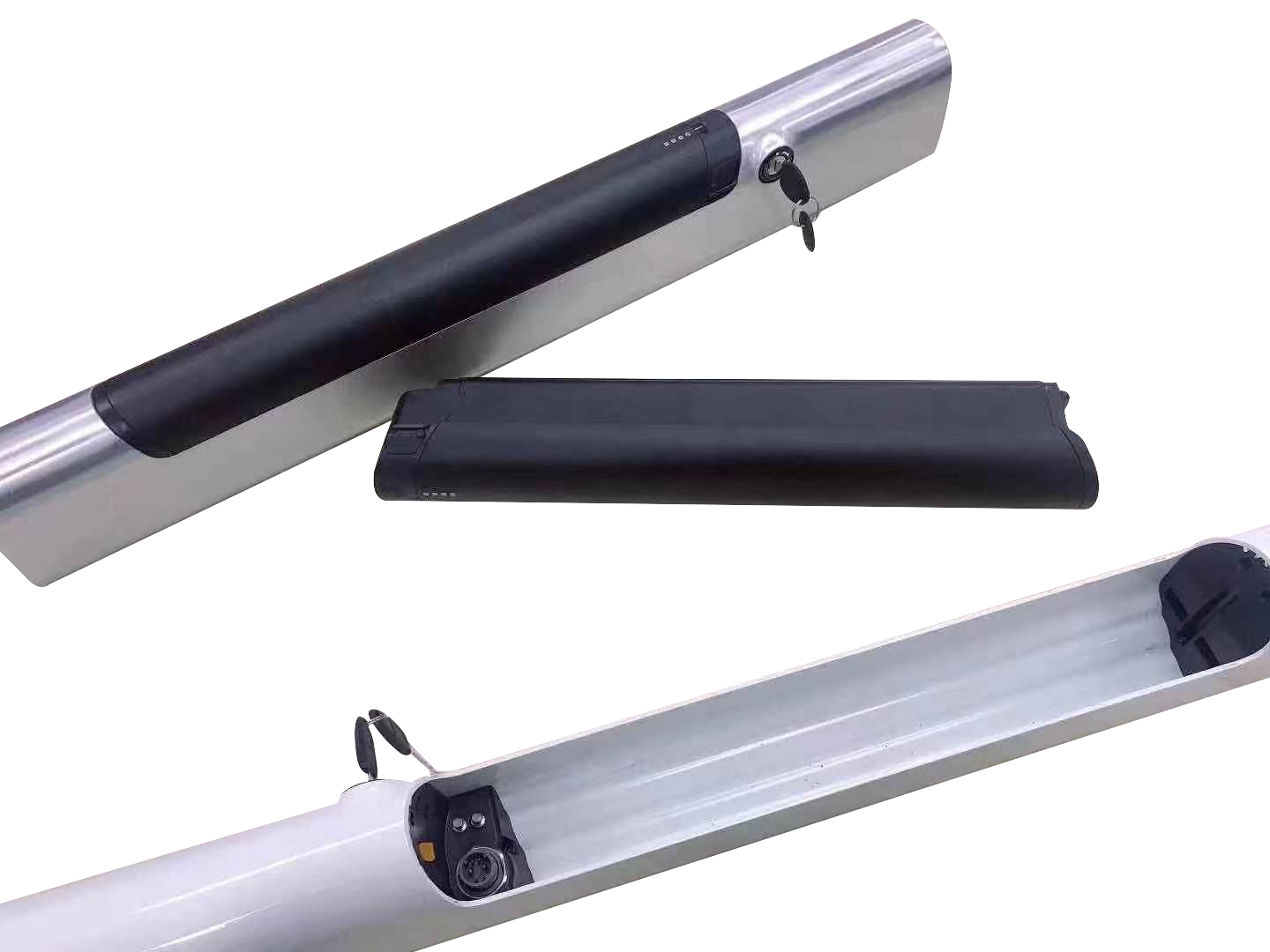

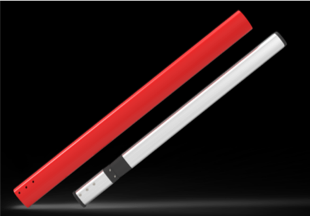

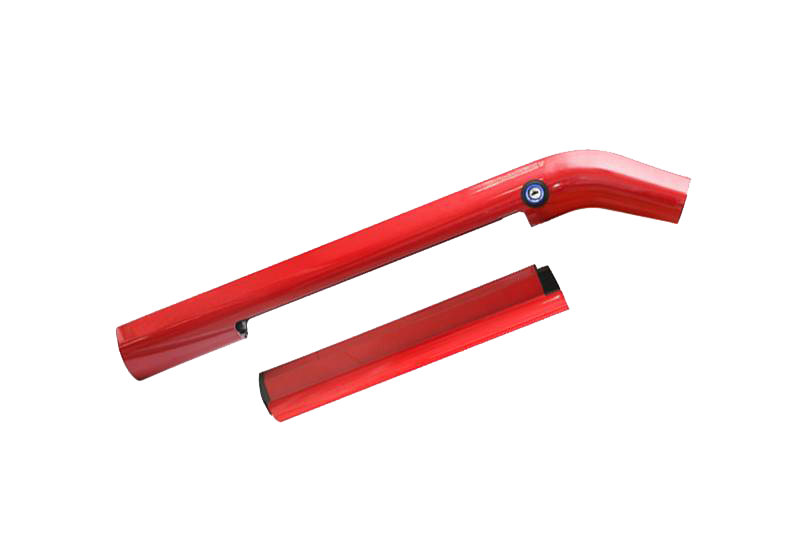

IN TUBE
MODEL NO.
SPEC.
ANNOTATION
IT- 401
Cell Type : 18650 – 2.6A / 2.9A / 3.45A
Max Cell Q`ty : 18650 * 28pc
Max Capacity : 24V / 13.8h ; 36V / 6.9Ah ; 331Wh
Housing: Aluminum
Waterproof : IPX-5
communication: UART / CANBUS
Capacity LED Display : Non BMS EN13849
certificated : Non
OEM/ODM are welcome
IT- 402
Cell Type : 18650 – 2.6A / 2.9A / 3.45A
Max Cell Q`ty : 18650 * 40pc
Max Capacity : 36V / 13.8Ah ; 48V / 10.35Ah ; 496Wh
Housing: Plastic
Waterproof : IPX-5
communication: UART / CANBUS
Capacity LED Display : Non BMS EN13849
certificated : Non
OEM/ODM are welcome
IT-403
Sundry Folding E- BIKE Battery ODM / OEM Cell Type : 18650 – 2.6A / 2.9A / 3.45A
Max Cell Space : 18650 * 65pc
Max Capacity : 36V / 20.7Ah ; 48V / 17.25Ah ; 745Wh
Housing: Aluminum
Waterproof : IPX-5
communication: UART / CANBUS
Capacity LED Display : YES. BMS EN13849
certificated : YES
OEM/ODM are welcome
B2B - CUSTOMEIZED EV BATTERY PACK OEM / ODM
MODEL NO.
SPEC.
ANNOTATION
CP-501
Sundry regular E-bike battery pack
( by requirement )
Cell Type : 18650 – 2.6A / 2.9A / 3.45A
Battery Voltage : 24V ~ 60V
Motor : Max 750W
Max Capacity : by requirement ( depend on housing size )
Charging Current : Max 4A
Continue Discharging Current : Max 40A
Housing: Plastic / Aluminum / ODM
communication: UART / CANBUS
Certification : by requirement .
OEM/ODM are welcome
CP-502
E-scooter
Cell Type : 18650 – 2.6A / 2.9A / 3.45A
Battery Voltage : 24V ~ 48V
Max Capacity : 496Wh
Charging Current : Max 4A
Continue Discharging Current : Max 40A
Housing: Plastic / Aluminum
communication: UART / CANBUS .
OEM/ODM are welcome
CP-503
Golf Car – Lead-acid batteries replacement
Cell Type : A – Li(NCM)O2 :18650 – 2.6A / 2.9A / 3.45A ; 21700 – 5.0A B – LiFePO4
Capacity : 100A / 120A /150A / 200A
Battery Voltage : 12 V ~ 48V
Charging Current : Max 30A
Continue Discharging Current : Max 100A
Housing: Plastic / Aluminum / ODM
communication: UART / CANBUS .
OEM/ODM are welcome
CP-505
E-forklift – Lead-acid batteries replacement
Cell Type : A – Li(NCM)O2 :18650 – 2.6A / 2.9A / 3.45A ; 21700 – 5.0A B – LiFePO4
Capacity : 100A / 120A /150A / 200A
Battery Voltage : 12 V ~ 48V
Charging Current : Max 30A Continue
Discharging Current : Max 100A
Housing: Plastic / Aluminum / ODM
communication: UART / CANBUS .
OEM/ODM are welcome
